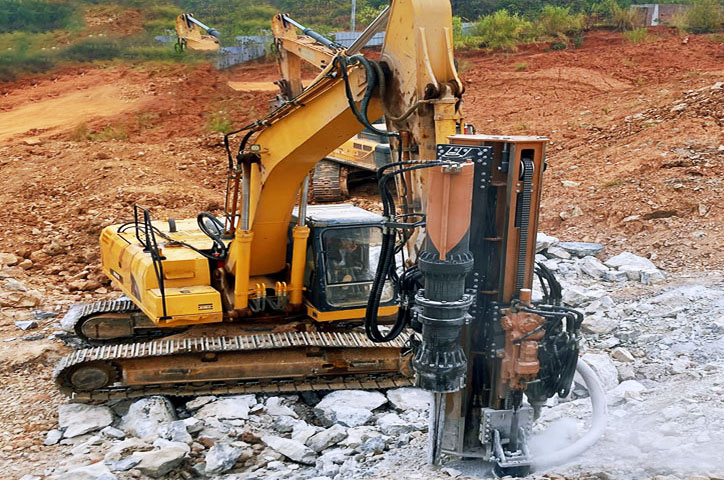

Rock Drilling & Splitting Machine
Rock driling and splitting machine is a new and efficient type of rock driling and splitting equipment, suitable for various hard rock mining projects, providing a solution for efficient and environmentally friendly hard rock minning. Hydraulic-motor-driven screw compressor delivers high-pressure air for hydraulic drilling rigs or pneumatic toolsblowing slag, dust rem-oval, lubrication flushing. Low noise, compact, energy-saving & eco-friendly, stable performance.
HOT PRODUCTS

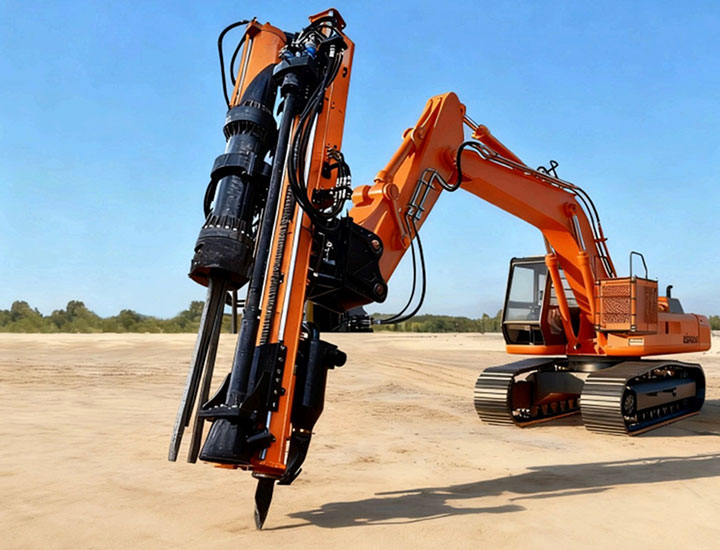

YG -130 With 20T-36T Excavators
Max Vertical Splitting Height：6715mm
Max Splitting Depth：6705mm
Max Splitting Distance：10225mm

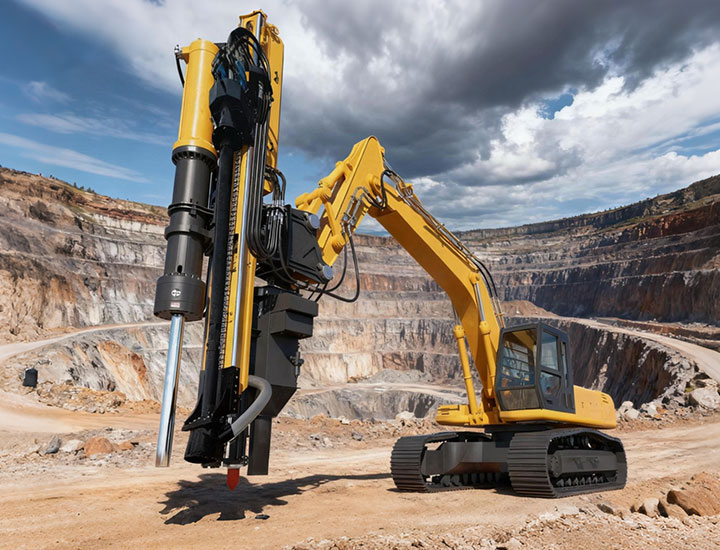

YG -152 With 36T-48T Excavators
Max Vertical Splitting Height：6905mm
Max Splitting Depth：7025mm
Max Splitting Distance：10875mm

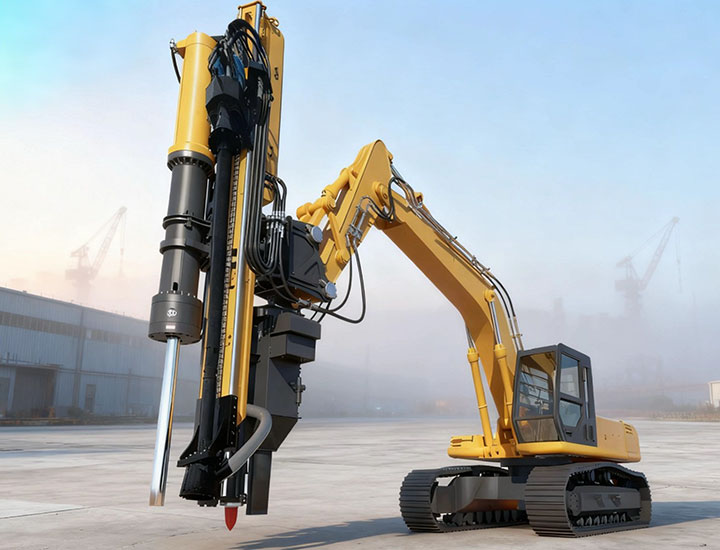

YG -210 With 48T-56T Excavators
Max Vertical Splitting Height: 6770mm
Max Splitting Depth: 8050mm
Max Splitting Distance: 11640mm
Model Parameters
| Parameter | ZW-130 | ZW-152 | ZW-210 |
| Pling Beam Length(mm) | 3875 | 4850 | 5525 |
| Driling Adwance Stroke(mm) | 2000 | 2600 | 3500 |
| Max Drlling Thrust Force(KN) | 50 | 50 | 50 |
| Max Driling Pull Force(KN) | 32 | 32 | 32 |
| Piling Advance Stroke(mm) | 1500 | 1800 | 2300 |
| Max Piling Thrugt Force(KN) | 160 | 160 | 160 |
| Max Piling Pull Force(KN) | 100 | 100 | 100 |
| Max Hydraulic Pressure (MPa) | 35 | 35 | 35 |
| Hydraulic Flow(L/min) | 240 | 240 | 240 |
| Weight(kg) | 4200 | 6200 | 8300 |
| Weight(kg) | 4200 | 6200 | 8300 |
| Dirmensions(mm) | 4210*1400*1785 | 5270*1485*1840 | 5810*1485*1840 |
| Driling Diareter(mm) | 115-130 | 140-152 | 203-256 |
| Max Driling Dapth(mm) | 1900 | 2300 | 3400 |
| Driling Speed(mm√min) | 800-100 | 800-100 | 800-100 |
Give us a call,our team will recommend the one that suits you best.

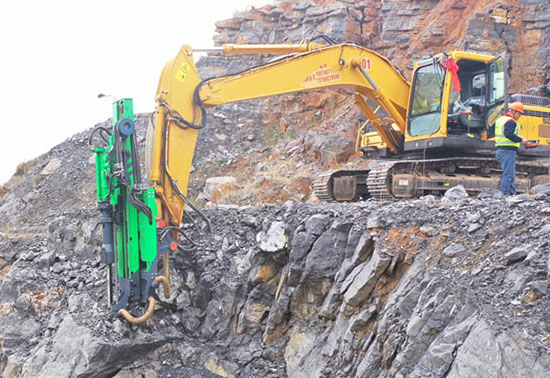

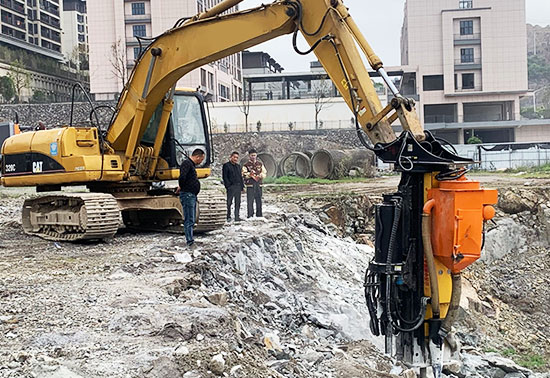

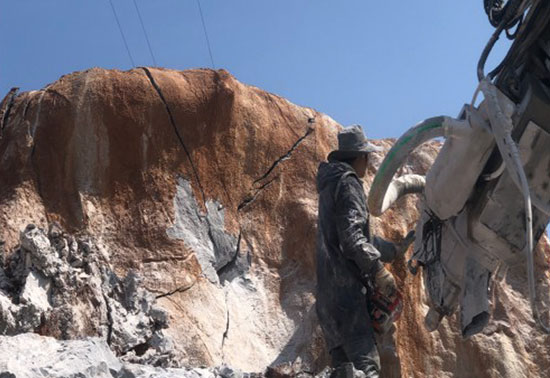

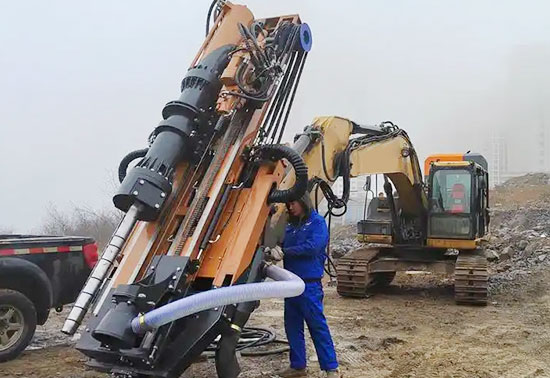

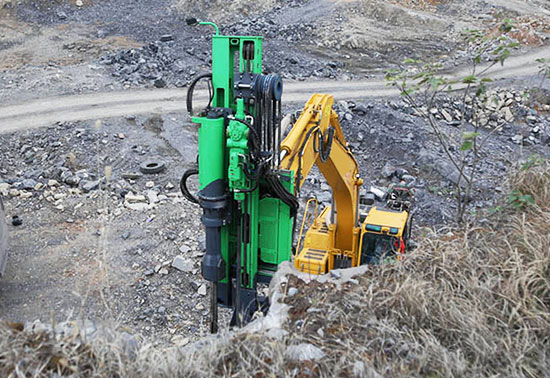

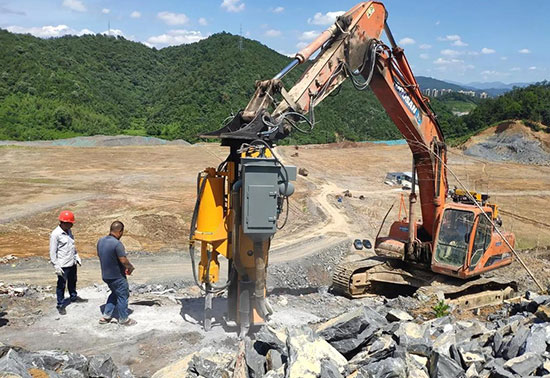

Product Display
lmported wedge material, solving the challenges of multi-angle, slope, and cross-section in foundation pit construction.

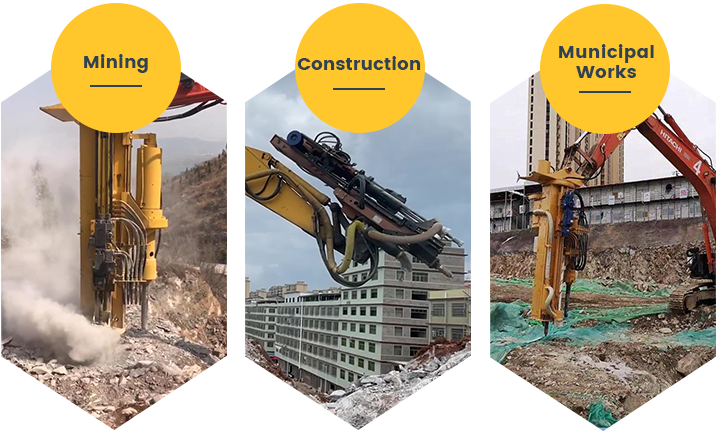

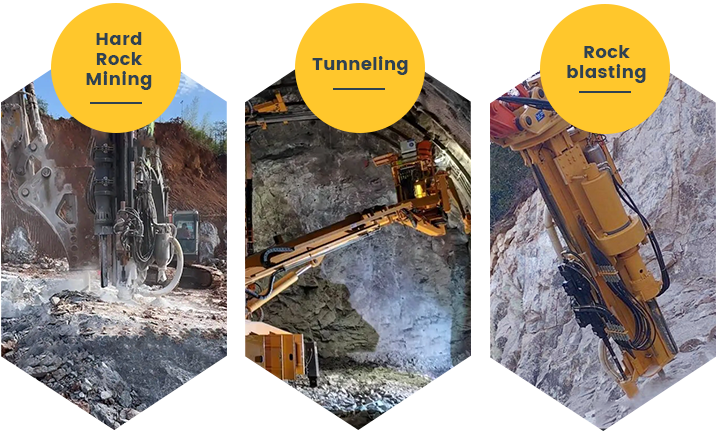

APPLICATION
ABOUT US

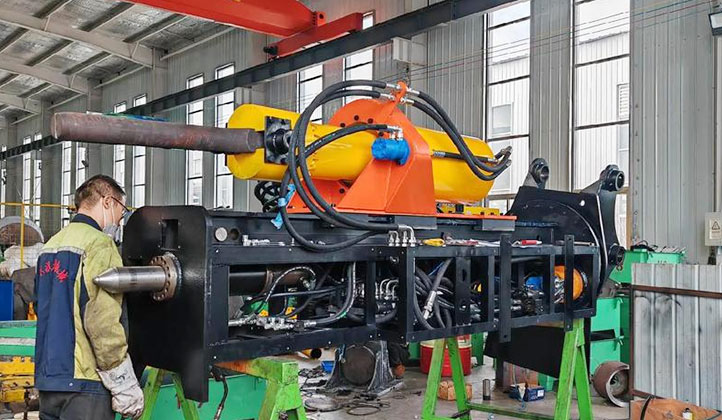

Henan YG Machinery Co., Ltd is a professional manufacture of drilling rigs. In the 18 years development, YG has been insisting on providing customers with first-class quality, first-class reputation, and first-class service to customers. With high quality products, we have won the trust of customers from 100+ countries. We’ll continue devoting to make products with higher quality.
